G-8BT2 Mobile Handheld Blue Tooth Printer

Description

G-8BT2 is mobile handheld blue tooth printer can Integrate with Non OS based devices,OS
based devices like android, iOS and Windows etc. The simple user friendly design allows you to operate
with easy and light weight and handy. Inbuilt 2 inch thermal graphic printer enables to print receipt for the
transaction though wireless Bluetooth/USB/RS-232 serial interface to mobile phone /tab/ PC /Laptop

Specifications:
Model G-8BT2
Printer 2inch/58mm Thermal Graphic Printer

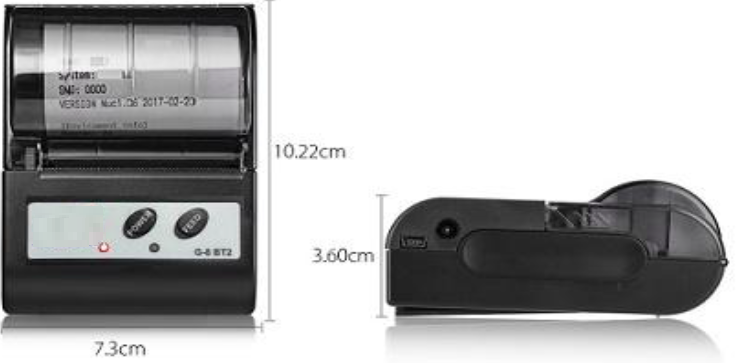

Dimension 73*103*45mm
Print method Direct thermal printing
Paper width 57.5± 0.5mm
print width 48mm
Weight ( g) 235 (not including the paper roll)
Max diameter of
paper roll
40mm
Resolution 8 dots/mm, 384 dots/line
internal characters ASCII CH(9×17,9×24,12×24); GB18030(16×16,24×24)
Print speed 90mm/s
Life cycle time 100km(printing density under 12.5%)/100 million pulses
text and graphic
Support
English, figure, symbol, Chinese, graph, curve, icon pre-stored,
barcode(CODE39EAN13EAN8 CODABARCODE128CODE93ITF)QR code ,PDF417
Dot pitch
(resolution)
203DPI/8 dots/mm
interface Bluetooth 4.0 , Mini USB
Power 1500mAh 7.4V rechargeable Lithium polymer battery
Recharge adapter Stand by recharging / AC adapter
Self-check Without paper / cover open
Black mark test Supported
Paper feeding Easy paper loading
commands ESC/POS compatible with order sets
Paper cut By hands
operate setting Temperature -10°C~50°C ; Humidity 20%~85%
Recharge Setting Temperature 5°C~40°C; Humidity 20%~85%
Storage Setting Temperature -20°C~70°C ; Humidity 5%~95%
Standard
accessories
Paper roll ,AC adapter, USB cable and Carry bag
ARM 32 bit Processor Bluetooth 4.0/RS232/2” Thermal Printer USB LI-PO BATTERY
